Matter

The atom

Protons, neutrons, electrons. Z and A. Isotopes. Electron arrangement in shells.

CAPS

Grade 10 · Physical Sciences (Chemistry) · Matter

Chemistry is Physical Sciences Paper 2.

  • The paper

    Grade 10 Paper 2 covers the atom, the periodic table, chemical bonding, and representing reactions.

  • Working

    Balance before you use a mole ratio. Show n = mM or c = nV with units. An IUPAC name needs the number on the functional group. A reaction that is not balanced cannot support a stoichiometric answer.

  • The relation

    A = Z + N. Mass number = protons + neutrons

  • How a marker reads it

    A is the bigger number. First-timers swap Z and A. Write “Z = protons” before you count neutrons.

Paper 2 is 150 marks. Tables of ions and the data sheet are part of the exam. Significant figures follow the data you were given.

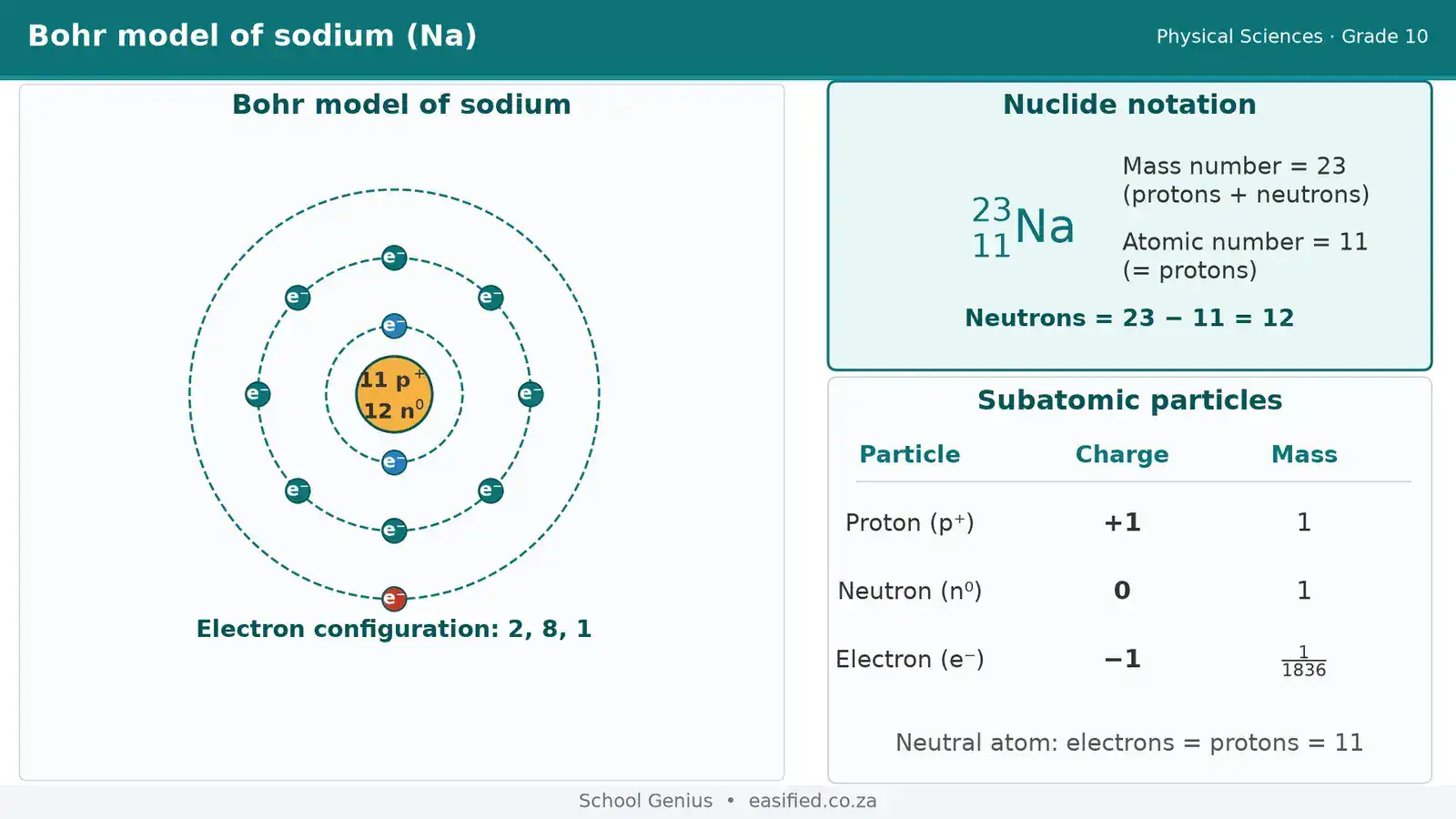

Diagram

Worked example

Chlorine-35. Find Z, A, protons, neutrons, electrons in the neutral atom.

Simplified approach

The name chlorine means Z = 17. The 35 is A. Neutral means electrons = protons.

Culture note

Swimming-pool chlorine in a Joburg suburb is a mix of Cl-35 and Cl-37 — that is isotopes.

Formulas

A=Z+N

Mass number = protons + neutrons

Exam tricks you must know

These are the moves markers look for — not shortcuts that skip the method, but the habits that earn the method mark.

  • Never change a subscript to balance — only coefficients

    How:The given formula is a substance. Fe₂O₃ is not FeO. Count atoms on each side. Put a number in front (coefficient) until both sides match. Changing a subscript invents a different compound and zeros the question.

    When to use it:Balancing equations and mole-ratio questions.

Step 1 / 5

Read Z and A

Periodic table: Cl has Z = 17. The name chlorine-35 means A = 35.

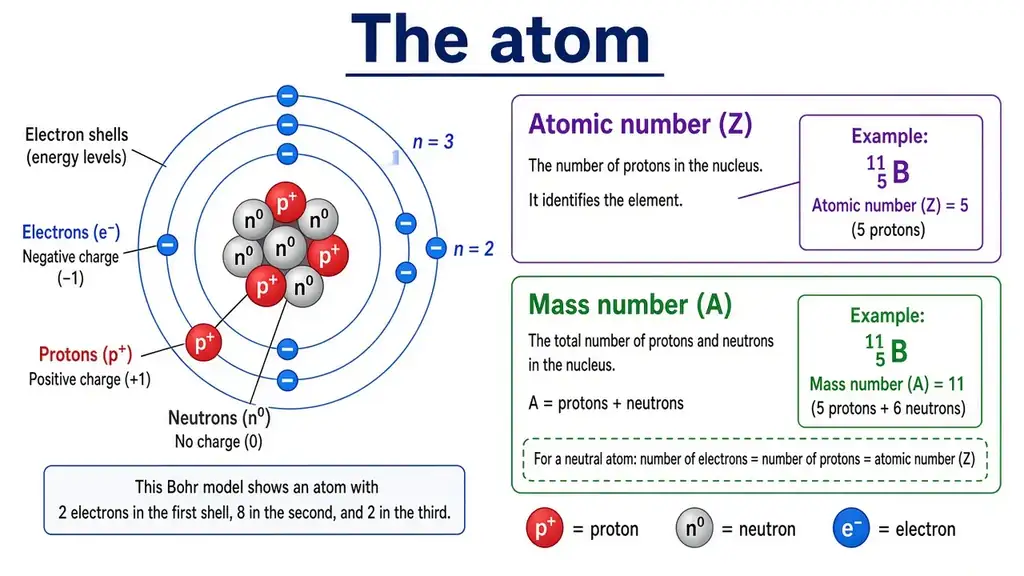

Diagram
Diagram
Z=17,A=35

Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

4. Step-by-step working

  1. 01

    Read Z and A

    Periodic table: Cl has Z = 17. The name chlorine-35 means A = 35.

    Z=17,A=35
  2. 02

    Neutrons

    N = A − Z = 35 − 17 = 18. Neutral atom: electrons = 17.

    p⁺=17,n⁰=18,e⁻=17
  3. 03

    Step F — Box the answer with its unit

    Z=17, A=35, 17 protons, 18 neutrons, 17 electrons

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

Carbon-14 has mass number 14. The atomic number of carbon is 6. A neutral atom is used. How many protons, neutrons and electrons does it have, and what is the electron arrangement of a carbon atom?

4. Step-by-step working

  1. 01

    Identify the given

    Protons = Z = 6. That is true for carbon-12 and carbon-14.

    protons=6
  2. 02

    Subtract

    Neutrons=14−6=8.

    neutrons=8
  3. 03

    Calculate

    A neutral atom has 6 electrons. Shells: 2, then 4. There is no M shell.

    2, 4

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: Carbon-14 has mass number 14. The atomic number of carbon is 6. A neutral atom is used. How many protons, neutrons and electrons does it have, and what is the electron arrangement of a carbon atom?

In other words — as if you have never seen this before

If you have never seen this before: Isotopes share Z. Neutrons are A − Z. A neutral atom has as many electrons as protons. Carbon fills 2, then 4. It does not have a third shell. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

A=14, Z=6, neutral atom.

3. Which method — and why this one?

Isotopes share Z. Neutrons are A − Z. A neutral atom has as many electrons as protons. Carbon fills 2, then 4. It does not have a third shell.

4. Step-by-step working

  1. 01 / 06

    Identify the given

    Protons = Z = 6. That is true for carbon-12 and carbon-14.

    protons=6

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 06

    Subtract

    Neutrons=14−6=8.

    neutrons=8

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 06

    Calculate

    A neutral atom has 6 electrons. Shells: 2, then 4. There is no M shell.

    2, 4

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  4. 04 / 06

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  5. 05 / 06

    Step F — Box the answer with its unit

    6 protons, 8 neutrons, 6 electrons. Arrangement 2, 4.

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  6. 06 / 06

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

6 protons, 8 neutrons, 6 electrons. Arrangement 2, 4.

Copy onto your answer sheet — in this order

Formula: protons = 6

Answer: 6 protons, 8 neutrons, 6 electrons. Arrangement 2, 4.

6. Check it like a marker

2, 8, 2 is magnesium (Z = 12), not carbon. Twelve is the mass number, not the proton number.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
