Plants

Support and transport in plants

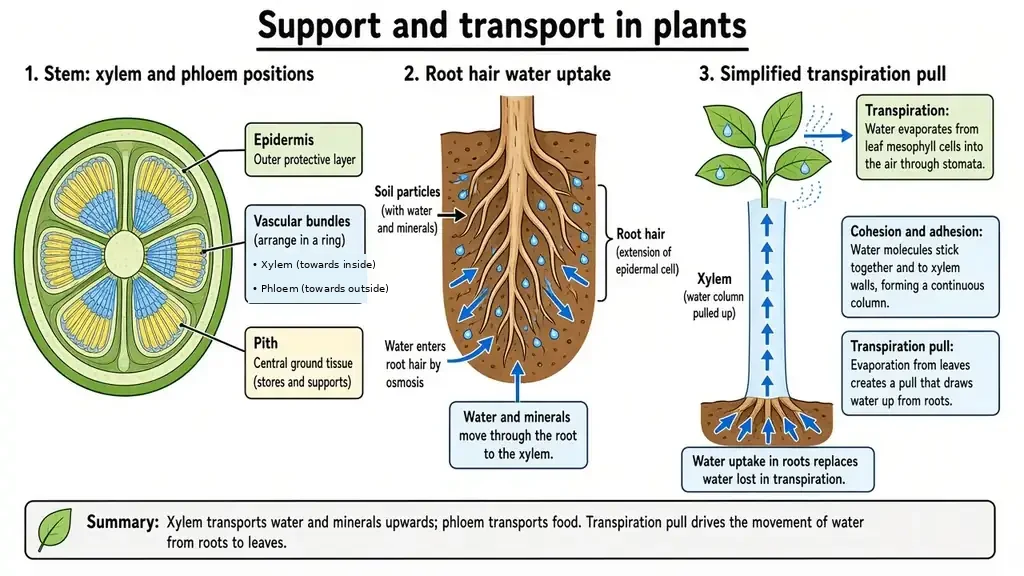

Plants stand up and move materials with turgor pressure and with two transport tissues, xylem and phloem.

CAPS

Grade 10 · Life Sciences · Plants

Life Sciences is two papers. Use the strand to know which one.

  • Where it is examined

    Grade 10 is the chemistry of life, cells, tissues, organs, support and transport, and the biosphere, biodiversity and the history of life.

  • How to write it

    Name the structure, then say what it does. A labelled diagram only scores if the labels are the biological names. “It helps the body” is not a function.

  • How a marker reads it

    A common mix-up is to send sugars up the xylem, or to say xylem cells are alive and full of chloroplasts.

A 2-mark “explain” wants two facts, or one fact and its reason. Extra sentences that contradict the first one can cancel a mark.

light

Diagram

Worked theory

Worked theory. A spinach bunch left on the counter versus one in a jar of water. Out of water the vacuoles shrink, turgor falls, and the leaves wilt. In water the xylem refills, vacuoles firm up, and the bunch stands. The sugars made in the leaves do not travel in that same water pipe. They travel in the phloem. Block the phloem, as a ring of bark cut from a tree does, and sugars pile up above the cut while water can still rise in the deeper xylem.

More worked examples

  • Ring-barked citrus tree

    A ring of bark cut from a lemon tree swells above the cut within weeks. Sugars made in the leaves cannot pass the cut, because the phloem is in the bark. The tree still gets water for a while, because the xylem is deeper wood and was not removed. Fruit above the ring stays small once the stored sugars are used. That is how you can see the two pipes are not one pipe.

  • Spinach that droops at noon

    A spinach plant in a pot droops at noon because the vacuoles have lost water and no longer push on the walls. Water it, and by evening the leaves stand up. The xylem was not cut. The phloem was not cut. Turgor came back. A plant that stays limp after a thorough watering has a different problem. This one was a pressure problem, and the recovery shows it.

In ordinary words

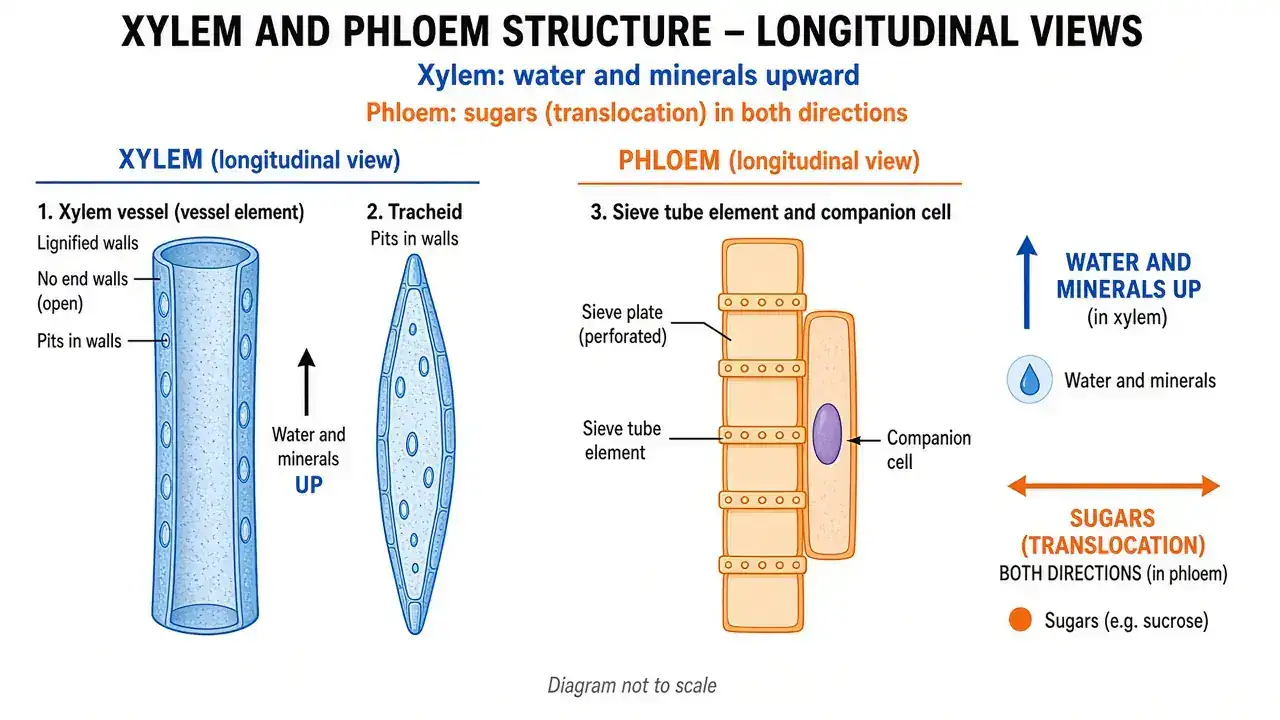

A full vacuole pushes the cytoplasm against a firm cell wall. That turgor is what keeps a soft stem upright. Xylem vessels are dead tubes stiffened with lignin. They carry water and salts from root to leaf. Phloem sieve tubes are living. They carry sugars from leaves to roots, fruits and growing tips, in either direction as the plant needs. Transpiration, the loss of water vapour from leaves, pulls more water up the xylem.

In South Africa

A wilted mielie seedling after a hot Free State afternoon, recovering at night, is turgor and xylem in one story.

Part 1 / 4

What it is

Plants stand up and move materials with turgor pressure and with two transport tissues, xylem and phloem.

Diagram

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

A potometer shows the air bubble moving 30 mm in 10 minutes. The capillary tube has a cross-sectional area of 1 mm². Calculate the rate of water uptake.

4. Step-by-step working

  1. 01

    Multiply

    30 mm×1 mm²=30 mm³.

  2. 02

    Divide

    3010=3 mm³ per minute.

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: A potometer shows the air bubble moving 30 mm in 10 minutes. The capillary tube has a cross-sectional area of 1 mm². Calculate the rate of water uptake.

Before any working — hunt first

Given

Numbers and units already in the sentence: 30 mm · 10 minutes · 1 mm². Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: the rate of water uptake. Circle that word — that is the missing variable.

Find

We are required to find: the rate of water uptake. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

What we need to calculate: Volume = distance × area; rate = volumetime. Then substitute the given, one line at a time, to get the rate of water uptake.

In other words — as if you have never seen this before

If you have never seen this before: Volume = distance × area; rate = volumetime. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

Distance 30 mm, time 10 min, area 1 mm².

3. Which method — and why this one?

Volume = distance × area; rate = volumetime.

4. Step-by-step working

  1. 01 / 05

    Multiply

    30 mm×1 mm²=30 mm³.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 05

    Divide

    3010=3 mm³ per minute.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 05

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  4. 04 / 05

    Step F — Box the answer with its unit

    3 mm³min.

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  5. 05 / 05

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

3 mm³min.

Copy onto your answer sheet — in this order

Answer: 3 mm³min.

6. Check it like a marker

A potometer measures uptake, which is close to the transpiration rate.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
