Systems

Gaseous exchange

Gaseous exchange is the diffusion of oxygen into the blood and carbon dioxide out of it, across a thin, moist, large surface.

CAPS

Grade 11 · Life Sciences · Systems

Life Sciences is two papers. Use the strand to know which one.

  • Where it is examined

    Grade 11 works through energy transformations, gas exchange, excretion, population ecology and human impact. The same two-paper pattern is used.

  • How to write it

    Name the structure, then say what it does. A labelled diagram only scores if the labels are the biological names. “It helps the body” is not a function.

  • How a marker reads it

    A common mix-up is to say oxygen is pumped into the blood by the lungs, rather than diffusing, or to call breathing the same process as cellular respiration.

A 2-mark “explain” wants two facts, or one fact and its reason. Extra sentences that contradict the first one can cancel a mark.

light

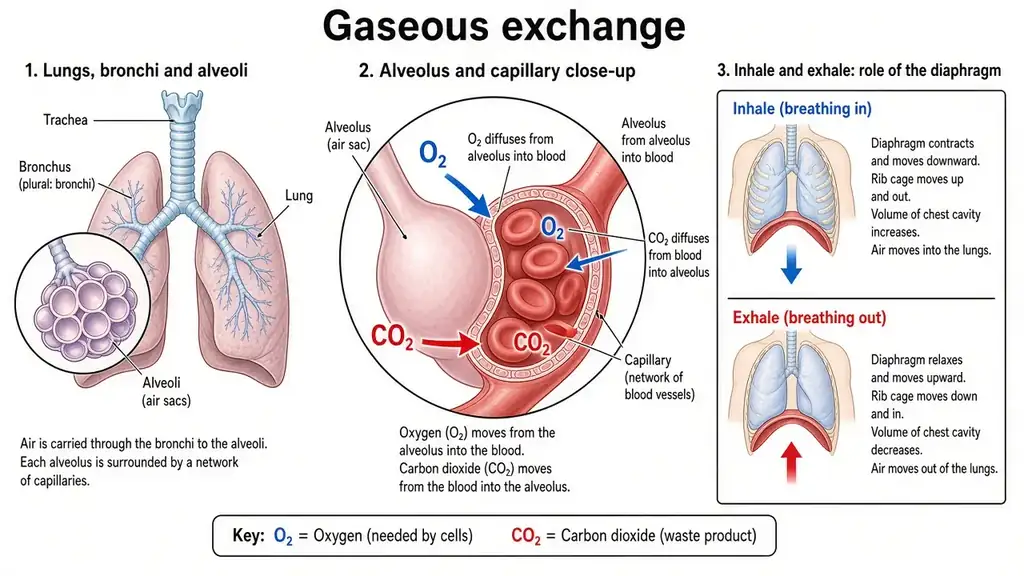

Diagram

Worked theory

Worked theory. Air enters, the chest expands, alveoli fill. Oxygen crosses into a red blood cell and is carried away. Carbon dioxide crosses out. If the alveoli fill with fluid, or if smoke destroys their walls so the surface shrinks, diffusion fails even though the person is still trying to breathe. A fish uses gills for the same idea: thin, moist, large surface, close to blood. The organ changes. The principle does not. Holding your breath stops the fresh supply. It does not stop the cells needing oxygen.

More worked examples

  • Johannesburg and the coast

    At sea level the air pressing into the alveoli is denser, so the oxygen gradient into the blood is steep. On the Highveld, about 1 700 m up, each breath brings less oxygen. Diffusion still happens, but the gradient is shallower, which is why a visitor from Durban is breathless on a flight of stairs in Johannesburg for a few days. The alveoli did not change. The air did. Fluid in those alveoli, as in pneumonia, flattens the gradient even at the coast, because the surface is no longer thin.

  • Fewer air sacs

    Healthy lungs have an enormous alveolar surface, thin and wet, so oxygen crosses quickly. Smoking destroys walls between alveoli, so many small sacs become fewer large ones. The surface shrinks. The person is breathless on a flight of stairs even at sea level, because less oxygen crosses each breath. The air outside did not change. The surface inside did. An inhaler that opens the bronchi does not rebuild those walls.

In ordinary words

In humans that surface is the alveoli in the lungs. Each alveolus is one cell thick, wrapped in capillaries. Inhaled air is high in oxygen, so oxygen diffuses into the blood. Blood arriving from the body is high in carbon dioxide, so carbon dioxide diffuses into the air to be exhaled. Breathing moves the air. Gaseous exchange is the diffusion. The tubes of the lung do not do the exchange. The alveoli do.

In South Africa

A peak-flow test at a clinic is about ventilation. The exchange itself is the alveolus you draw in Life Sciences.

Part 1 / 4

What it is

Gaseous exchange is the diffusion of oxygen into the blood and carbon dioxide out of it, across a thin, moist, large surface.

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

A person takes 15 breaths per minute with a tidal volume of 500 mℓ. Calculate the volume of air breathed per minute.

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: A person takes 15 breaths per minute with a tidal volume of 500 mℓ. Calculate the volume of air breathed per minute.

Before any working — hunt first

Given

Numbers and units already in the sentence: 15 breaths · 500 m. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: the volume of air breathed per minute. Circle that word — that is the missing variable.

Find

We are required to find: the volume of air breathed per minute. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

What we need to calculate: Ventilation = rate × tidal volume. Then substitute the given, one line at a time, to get the volume of air breathed per minute.

In other words — as if you have never seen this before

If you have never seen this before: Ventilation = rate × tidal volume. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

15 breaths, 500 mℓ each.

3. Which method — and why this one?

Ventilation = rate × tidal volume.

4. Step-by-step working

  1. 01 / 08

    Step A — Read the question twice

    Slow down. Circle the word that names the unknown. Underline every number and its unit. Do not grab a formula yet — first decide what the paper is actually asking.

    Why this step: If you can say the method in a sentence, you will pick the right formula. First-timers skip this and grab the first equation they remember.

  2. 02 / 08

    Step A2 — Hunt: Given, Missing, Find, Calculate

    Given: Numbers and units already in the sentence: 15 breaths · 500 m. Copy each one into a column. A name without a number is not given. Missing: After you copy the given, the letter that still has no number is missing. The paper is pointing at: the volume of air breathed per minute. Circle that word — that is the missing variable. Find: We are required to find: the volume of air breathed per minute. Write that as a symbol on the left, with a question mark, before you touch a formula. Calculate: What we need to calculate: Ventilation = rate × tidal volume. Then substitute the given, one line at a time, to get the volume of air breathed per minute.

    Why this step: Do not name the letters yet. First hunt: what already has a number (Given), what has no number (Missing), the word the paper wants (Find), and which formula still contains the missing letter (Calculate).

  3. 03 / 08

    Step B — Write the given in a column

    15 breaths, 500 mℓ each.

    Why this step: A column with units stops you mixing cm with m, or minutes with seconds. Markers can also see you started correctly.

  4. 04 / 08

    Step C — Name the method in words

    Ventilation = rate × tidal volume.

    Why this step: If you can say the method in a sentence, you will pick the right formula. First-timers skip this and grab the first equation they remember.

  5. 05 / 08

    Multiply

    15×500=7 500 mℓ=7,5 ℓmin.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  6. 06 / 08

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  7. 07 / 08

    Step F — Box the answer with its unit

    7,5 ℓ per minute.

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  8. 08 / 08

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

7,5 ℓ per minute.

Copy onto your answer sheet — in this order

Answer: 7,5 ℓ per minute.

6. Check it like a marker

Rate and depth increase during exercise.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
