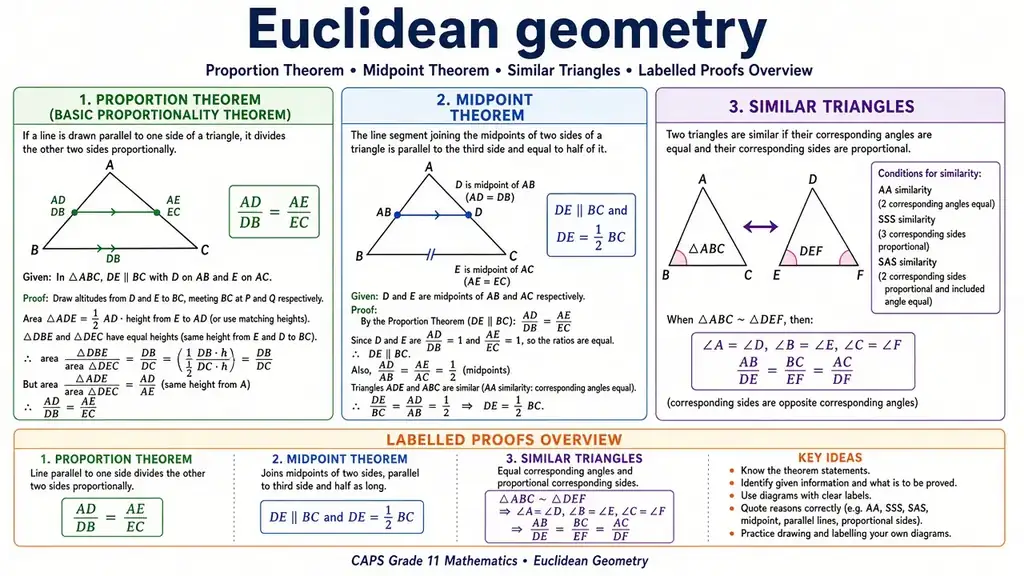

Euclidean geometry

Proportion & midpoint theorem

A line through the midpoint of one side, parallel to another, bisects the third side. Similar triangles share equal angles.

CAPS

Grade 11 · Mathematics · Euclidean geometry

This sits on Mathematics Paper 2.

  • The paper

    Paper 2 is Euclidean geometry, analytical geometry, trigonometry and statistics. Diagrams are part of the question. A reason in a geometry proof must name the theorem, not only the result.

  • Cognitive level

    CAPS spreads the marks across knowledge, routine procedures, complex procedures and problem solving. A routine question still wants the line of working. A problem-solving question wants you to choose the method, not only to calculate.

  • The relation

    DE ∥ BC, AD = DB ⇒ AE = EC. Midpoint theorem

  • How a marker reads it

    Gauteng geometry: quote the theorem in words before substituting numbers.

Each Mathematics paper is 150 marks. A correct substitution can earn a method mark even when the last arithmetic slips, if the formula was the right one.

hbθ

Diagram

Worked example

In ΔABC, D and E are midpoints of AB and AC. DE = 6 cm. Find BC.

Before any working — hunt first

Given

Numbers and units already in the sentence: 6 cm. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: BC. Circle that word — that is the missing variable.

Find

We are required to find: BC. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

Write DE ∥ BC, AD = DB ⇒ AE = EC with empty letters. Cross out every letter that already has a number. Calculate the letter that is still standing — that gives BC.

Simplified approach

The midpoint theorem says DE is parallel to BC and half as long.

Culture note

A soccer halfway line is a midpoint cut — it is parallel to the goal lines and half the pitch story in reverse.

Formulas

DE ∥ BC, AD=DB⇒AE=EC

Midpoint theorem

How to hunt the missing letter

Do not start by naming the letters. First hunt the missing one: copy every number you can see (Given). The letter with no number is Missing. The asking word is Find. The formula that still contains that letter is what you Calculate.

How to hunt: (1) Underline every number and its unit — those are Given. (2) Circle the asking word — find, calculate, how far, what is. That word names Find. (3) The letter the asking word names, which has no number yet, is Missing. (4) Write the formula with empty letters. Cross out every given letter. The letter still standing is what you Calculate.

  • DE ∥ BC

    parallel line

    How you spot this in the sentence

    When the sentence names the parallel line, that letter is DE ∥ BC. Copy the number next to it into Given. If the sentence never names it, DE ∥ BC is Missing. A line parallel to a side of the triangle. Midpoint theorem: it is half as long and cuts the other sides equally.

    Example:If D and E are midpoints of AB and AC, then DE = ½ BC.

  • AD, DB

    segments on the side

    How you spot this in the sentence

    When the sentence names the segments on the side, that letter is AD, DB. Copy the number next to it into Given. If the sentence never names it, AD, DB is Missing. AD = DB means D is the midpoint of AB.

    Example:Equal segments ⇒ equal intercepts on the third side too.

Exam tricks you must know

These are the moves markers look for — not shortcuts that skip the method, but the habits that earn the method mark.

  • Name similar triangles in corresponding order: ΔABC ∼ ΔDEF, not ΔABC ∼ ΔEFD

    How:Hunt equal angles first and mark them on the sketch. Then list vertices so that equal angles sit in the same position: A maps to D, B to E, C to F. The ratio statement uses that same order. Wrong order loses the reason mark even if the lengths are right.

    When to use it:Similarity, intercept, and 3-D trig that shares a triangle.

  • Always CAST — the second quadrant is a mark on its own

    How:Sketch CAST. Read the sign of sin, cos or tan from the quadrant, not from memory of a special angle. For a general solution write the acute angle first, then 180° − θ or 360° − θ. Leaving the second angle is the KZN and Gauteng dock.

    When to use it:Any sin / cos / tan equation that asks for θ in an interval.

  • Decide first: is money going in (F) or a loan being paid off (P)?

    How:Underline the asking word. “Future value”, “how much in the account”, “accumulate” → F. “Present value”, “loan”, “outstanding balance”, “how much can she borrow” → P. Write F or P in the Find cell before you open the formula sheet. The wrong letter loses the whole question.

    When to use it:Every compound-interest and annuity question on Paper 1.

Step 1 / 5

Name the theorem

D, E midpoints ⇒ DE ∥ BC and DE = ½ BC.

Diagram
Diagram

Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

4. Step-by-step working

  1. 01

    Solve

    6=½ BC ⇒ BC=12 cm.

    12 cm
  2. 02

    Step F — Box the answer with its unit

    BC=12 cm

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

In ΔABC, D and E midpoints of AB and AC. DE ∥ BC and DE = ½ BC. Name the theorem.

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: In ΔABC, D and E midpoints of AB and AC. DE ∥ BC and DE = ½ BC. Name the theorem.

Before any working — hunt first

Given

Numbers and units already in the sentence: no numbers yet — only a name, a diagram, or a worded unknown. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: Name the theorem. Circle that word — that is the missing variable.

Find

We are required to find: Name the theorem. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

Write Midpoint theorem with empty letters. Cross out every letter that already has a number. Calculate the letter that is still standing — that gives Name the theorem.

In other words — as if you have never seen this before

If you have never seen this before: Name the theorem (midpoint, proportionality or similarity), then apply it. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

D, E midpoints.

3. Which method — and why this one?

Name the theorem (midpoint, proportionality or similarity), then apply it.

4. Step-by-step working

  1. 01 / 05

    Name the theorem

    Midpoint theorem.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 05

    Calculate

    A line joining midpoints is parallel to the third side and half as long.

    Midpoint theorem

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 05

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  4. 04 / 05

    Step F — Box the answer with its unit

    Midpoint theorem

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  5. 05 / 05

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

Midpoint theorem

Copy onto your answer sheet — in this order

Formula: Midpoint theorem

Answer: Midpoint theorem

6. Check it like a marker

Sides scale by the ratio, but areas scale by the ratio squared. Match corresponding sides in the right order.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
