Waves

Electromagnetic radiation

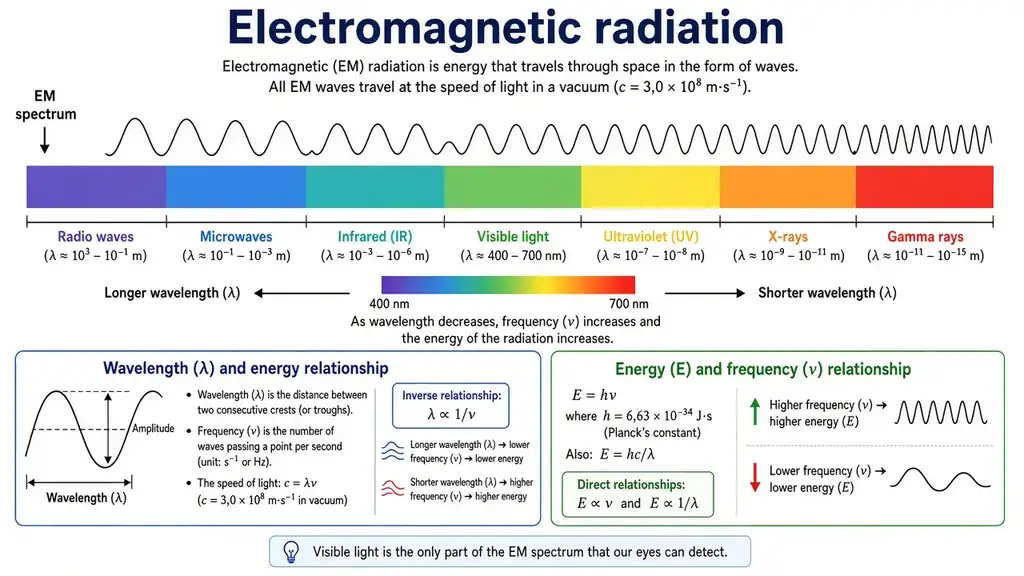

EM spectrum from radio to gamma, c = fλ in vacuum, and energy of a photon E = hf.

CAPS

Grade 10 · Physical Sciences (Physics) · Waves

Physics is Physical Sciences Paper 1.

  • The paper

    Grade 10 Paper 1 starts from vectors, motion in one dimension, energy, and electrostatics.

  • Working

    Write the formula as it appears on the data sheet, substitute with units, then the answer with the unit and the direction if it is a vector. A positive direction you chose must be stated when the sign matters.

  • The relation

    c = f λ. Speed of light 3.0 × 10⁸ m·s⁻¹

  • How a marker reads it

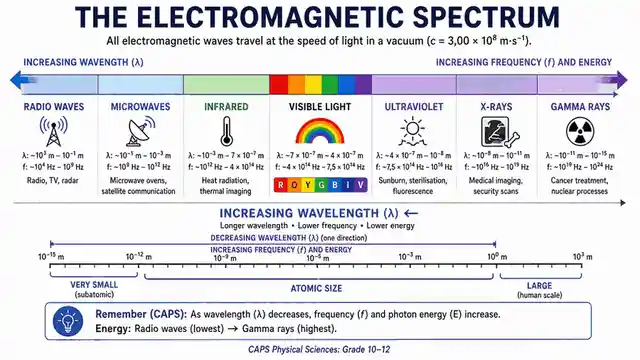

    Write the spectrum in order of increasing frequency: radio, micro, IR, visible, UV, X-ray, gamma.

Paper 1 is 150 marks. The data sheet is allowed. A formula copied wrong cannot be saved by a tidy final number.

Diagram

Worked example

An FM station in Johannesburg broadcasts at 94.7 MHz. Find the wavelength in air. c = 3.0 × 10⁸ m·s⁻¹.

Before any working — hunt first

Given

Numbers and units already in the sentence: 94.7 MHz · 3.0 · 10. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: the wavelength in air. Circle that word — that is the missing variable.

Find

We are required to find: the wavelength in air. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

Write c = f λ with empty letters. Cross out every letter that already has a number. Calculate the letter that is still standing — that gives the wavelength in air.

Simplified approach

Convert MHz to Hz (×10⁶), then λ = cf.

Culture note

94.7 is a real Gauteng station — the same wave that reaches a taxi radio in Alexandra.

Formulas

c=f λ

Speed of light 3.0 × 10⁸ m·s⁻¹

E=h f

Photon energy

How to hunt the missing letter

Do not start by naming the letters. First hunt the missing one: copy every number you can see (Given). The letter with no number is Missing. The asking word is Find. The formula that still contains that letter is what you Calculate.

How to hunt: (1) Underline every number and its unit — those are Given. (2) Circle the asking word — find, calculate, how far, what is. That word names Find. (3) The letter the asking word names, which has no number yet, is Missing. (4) Write the formula with empty letters. Cross out every given letter. The letter still standing is what you Calculate.

  • c

    speed of light

    How you spot this in the sentence

    When the sentence names the speed of light, that letter is c. Copy the number next to it into Given. If the sentence never names it, c is Missing. c = 3 × 10⁸ m/s in vacuum. c = f λ.

    Example:Yellow light λ ≈ 6×10⁻⁷ m→f=cλ ≈ 5×10¹⁴ Hz.

  • E

    photon energy

    How you spot this in the sentence

    When the sentence names the photon energy, that letter is E. Copy the number next to it into Given. If the sentence never names it, E is Missing. E = h f. One photon’s energy, in joules (or eV).

    Example:h=6,63×10⁻³⁴ J·s.

  • h

    Planck’s constant

    How you spot this in the sentence

    When the sentence names the Planck’s constant, that letter is h. Copy the number next to it into Given. If the sentence never names it, h is Missing. Planck’s constant. Tiny — that is why one photon’s energy is tiny.

    Example:Never forget the 10⁻³⁴.

Exam tricks you must know

These are the moves markers look for — not shortcuts that skip the method, but the habits that earn the method mark.

  • List the five, then pick the equation that still has the missing letter

    How:Write a column: v_i, v_f, a, Δt, Δx. Tick every one that has a number. The unticked letter is Missing. Choose the SUVAT line that does not need a letter you do not have — do not start from the formula you remember first.

    When to use it:Any constant-acceleration question that names times, speeds or distances.

  • Use g = 9,8 unless the paper says take g = 10

    How:Copy g from the data sheet onto your given column first. If the instruction line says “take g = 10”, write that. Otherwise 9,8 m·s⁻². Using 10 when the paper did not say so loses the accuracy mark even if the method is right.

    When to use it:Free fall, projectiles, weight, and gravitational potential energy.

  • State “mechanical energy is conserved” in words before you substitute

    How:The method mark sits in the sentence, not in the algebra. Write: mechanical energy conserved because no non-conservative work (or friction is neglected). Then E_k + E_p at A = E_k + E_p at B. Then substitute.

    When to use it:Any conservation question, rollers, pendulums, or falling masses.

Step 1 / 5

Frequency

f=94.7×10⁶=9.47×10⁷ Hz.

Diagram

Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

4. Step-by-step working

  1. 01

    Frequency

    f=94.7×10⁶=9.47×10⁷ Hz.

  2. 02

    Wavelength

    λ=3.0×10⁸9.47×10⁷ ≈ 3.17 m.

    λ ≈ 3.17 m

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

Green light has a wavelength of 5.0 × 10⁻⁷ m in a vacuum. Find its frequency. c = 3.0 × 10⁸ m·s⁻¹.

4. Step-by-step working

  1. 01

    Write the formula

    c=fλ, so f=cλ.

    f=cλ
  2. 02

    Substitute

    f=3.0×10⁸5.0×10⁻⁷=6.00×10¹⁴ Hz.

    6.00×10¹⁴ Hz

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: Green light has a wavelength of 5.0 × 10⁻⁷ m in a vacuum. Find its frequency. c = 3.0 × 10⁸ m·s⁻¹.

Before any working — hunt first

Given

Numbers and units already in the sentence: 5.0 · 10⁻ · 3.0 · 10. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: its frequency. Circle that word — that is the missing variable.

Find

We are required to find: its frequency. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

Write f = c/λ with empty letters. Cross out every letter that already has a number. Calculate the letter that is still standing — that gives its frequency.

In other words — as if you have never seen this before

If you have never seen this before: All EM waves travel at c in a vacuum. Use c = fλ and make f the subject. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

λ=5.0×10⁻⁷ m, c=3.0×10⁸ m·s⁻¹. Unknown: f.

3. Which method — and why this one?

All EM waves travel at c in a vacuum. Use c = fλ and make f the subject.

4. Step-by-step working

  1. 01 / 05

    Write the formula

    c=fλ, so f=cλ.

    f=cλ

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 05

    Substitute

    f=3.0×10⁸5.0×10⁻⁷=6.00×10¹⁴ Hz.

    6.00×10¹⁴ Hz

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 05

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  4. 04 / 05

    Step F — Box the answer with its unit

    6.00 × 10¹⁴ Hz

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  5. 05 / 05

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

6.00 × 10¹⁴ Hz

Copy onto your answer sheet — in this order

Formula: f=cλ

Answer: 6.00 × 10¹⁴ Hz

6. Check it like a marker

Do not use 340 m·s⁻¹ (the speed of sound). EM waves travel at 3.0 × 10⁸ m·s⁻¹ in a vacuum.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
