Light

Geometrical optics

Laws of reflection, plane mirrors, refraction intro, and ray diagrams.

CAPS

Grade 10 · Physical Sciences (Physics) · Light

Physics is Physical Sciences Paper 1.

The paper
Grade 10 Paper 1 starts from vectors, motion in one dimension, energy, and electrostatics.
Working
Write the formula as it appears on the data sheet, substitute with units, then the answer with the unit and the direction if it is a vector. A positive direction you chose must be stated when the sign matters.
The relation
i = r. Angle of incidence = angle of reflection
How a marker reads it
Angles in optics are measured from the NORMAL, not from the surface.

Paper 1 is 150 marks. The data sheet is allowed. A formula copied wrong cannot be saved by a tidy final number.

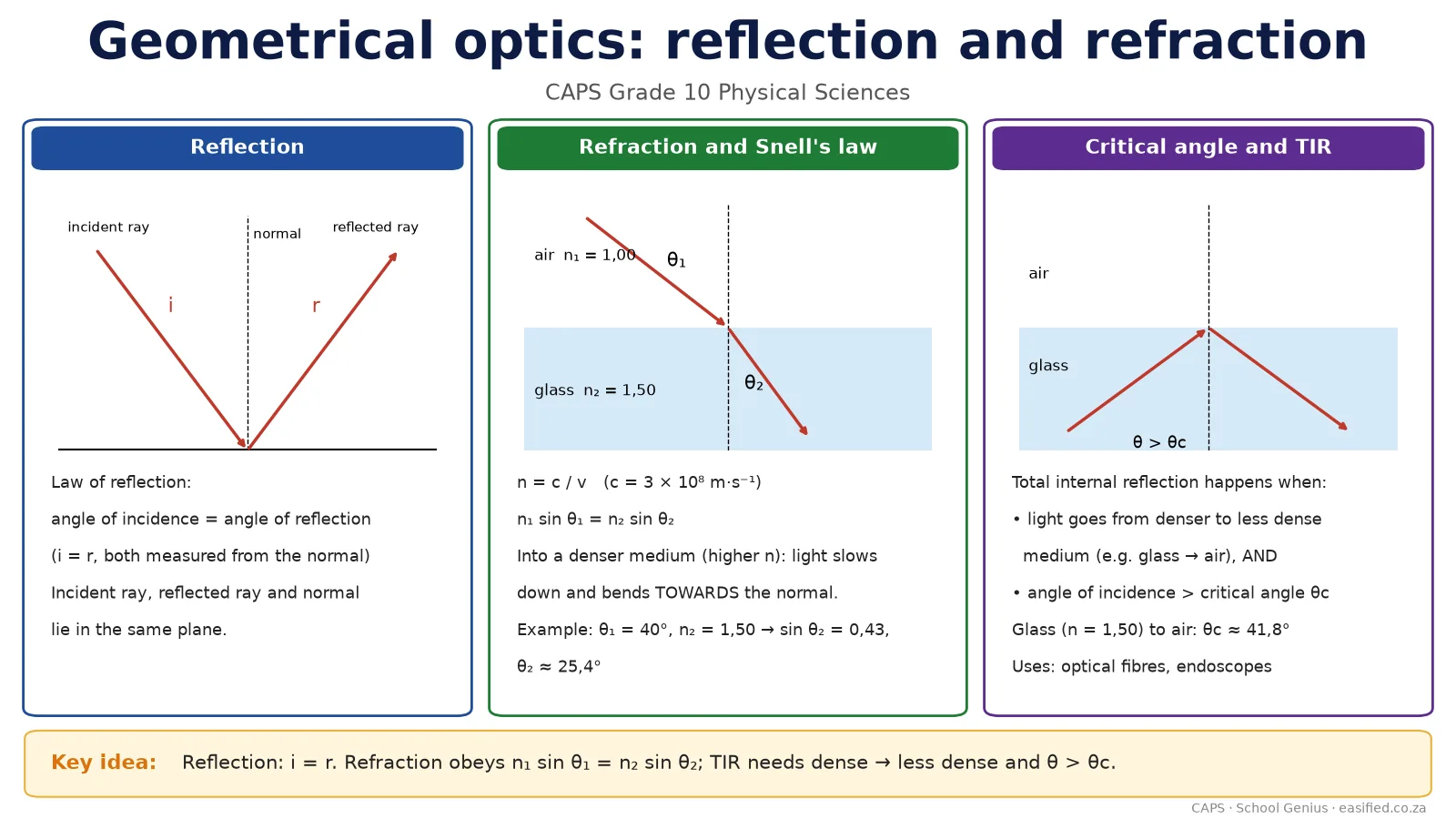

Diagram

Worked example

A ray hits a plane mirror at 35° to the normal. Find the angle of reflection and the angle between incident and reflected rays.

Simplified approach

i = r = 35°. The angle between the two rays is 70°.

Culture note

A polished steel gate in Alexandra reflecting a street lamp is a plane-mirror problem.

Formulas

i=r

Angle of incidence = angle of reflection

How to hunt the missing letter

Do not start by naming the letters. First hunt the missing one: copy every number you can see (Given). The letter with no number is Missing. The asking word is Find. The formula that still contains that letter is what you Calculate.

How to hunt: (1) Underline every number and its unit — those are Given. (2) Circle the asking word — find, calculate, how far, what is. That word names Find. (3) The letter the asking word names, which has no number yet, is Missing. (4) Write the formula with empty letters. Cross out every given letter. The letter still standing is what you Calculate.

i
angle of incidence
How you spot this in the sentence
When the sentence names the angle of incidence, that letter is i. Copy the number next to it into Given. If the sentence never names it, i is Missing. Angle between the incoming ray and the normal (not the surface).
Example:The law of reflection: i = r.
r
angle of reflection
How you spot this in the sentence
When the sentence names the angle of reflection, that letter is r. Copy the number next to it into Given. If the sentence never names it, r is Missing. Angle between the outgoing ray and the normal. Equal to i on a plane mirror.
Example:If i = 35°, r = 35°.

Exam tricks you must know

These are the moves markers look for — not shortcuts that skip the method, but the habits that earn the method mark.

TIR only from denser to rarer, and only if i > c
How:Hunt the two media. Write n_1 and n_2. TIR can only start in the larger n. Then calculate c = arcsin(n₂ / n₁). Compare i with c. If i ≤ c, you do not have TIR — you have refraction. Write that sentence; it is a method mark.
When to use it:Fibre optics, diamond, and “will the ray leave the block?”.
List the five, then pick the equation that still has the missing letter
How:Write a column: v_i, v_f, a, Δt, Δx. Tick every one that has a number. The unticked letter is Missing. Choose the SUVAT line that does not need a letter you do not have — do not start from the formula you remember first.
When to use it:Any constant-acceleration question that names times, speeds or distances.
Use g = 9,8 unless the paper says take g = 10
How:Copy g from the data sheet onto your given column first. If the instruction line says “take g = 10”, write that. Otherwise 9,8 m·s⁻². Using 10 when the paper did not say so loses the accuracy mark even if the method is right.
When to use it:Free fall, projectiles, weight, and gravitational potential energy.

Step 1 / 7

Step A — Read the question twice

Slow down. Circle the word that names the unknown. Underline every number and its unit. Do not grab a formula yet — first decide what the paper is actually asking.

Why this step: If you can say the method in a sentence, you will pick the right formula. First-timers skip this and grab the first equation they remember.

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

A light ray strikes a plane mirror. The angle between the ray and the mirror surface is 30°. Find the angle of incidence and the angle of reflection.

4. Step-by-step working

01
Find the angle to the normal
i=90°−30°=60°.
i=60°
02
Apply the law
Law of reflection: the angle of reflection equals the angle of incidence.
r=i
03
State
r=60°.
r=60°

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: A light ray strikes a plane mirror. The angle between the ray and the mirror surface is 30°. Find the angle of incidence and the angle of reflection.

In other words — as if you have never seen this before

If you have never seen this before: Angles in optics are measured from the NORMAL, which is at 90° to the mirror. Then use the law of reflection: i = r. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

Angle between ray and mirror = 30°.

3. Which method — and why this one?

Angles in optics are measured from the NORMAL, which is at 90° to the mirror. Then use the law of reflection: i = r.

4. Step-by-step working

01 / 06
Find the angle to the normal
i=90°−30°=60°.
i=60°
Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.
02 / 06
Apply the law
Law of reflection: the angle of reflection equals the angle of incidence.
r=i
Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.
03 / 06
State
r=60°.
r=60°
Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.
04 / 06
Step G — Sense-check the size
Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.
Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.
05 / 06
Step F — Box the answer with its unit
i=60°, r=60°
Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.
06 / 06
Step H — What the marker is looking for
On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.
Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

i=60°, r=60°

Copy onto your answer sheet — in this order

Formula: i=60°

Answer: i=60°, r=60°

6. Check it like a marker

Using 30° as the angle of incidence measures from the mirror, not from the normal.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
